HDF5 data selection#

../_images/upload_hdf5.svg

Description#

Builds a Darfix dataset from raw data contained in a Bliss HDF5 file.

This is done by selecting

  • the HDF5 filename

  • the URL where images are located in the HDF5 file

  • the URL where motors are located in the HDF5 file

Optionally, dark data can be selected as well.

Tip

If your data is stored in EDF files, you can convert them to HDF5 <../tutorials/edf_conversion.html>`_ before using this widget.

Signals#

Outputs:

  • Dataset: output dataset

Tutorial#

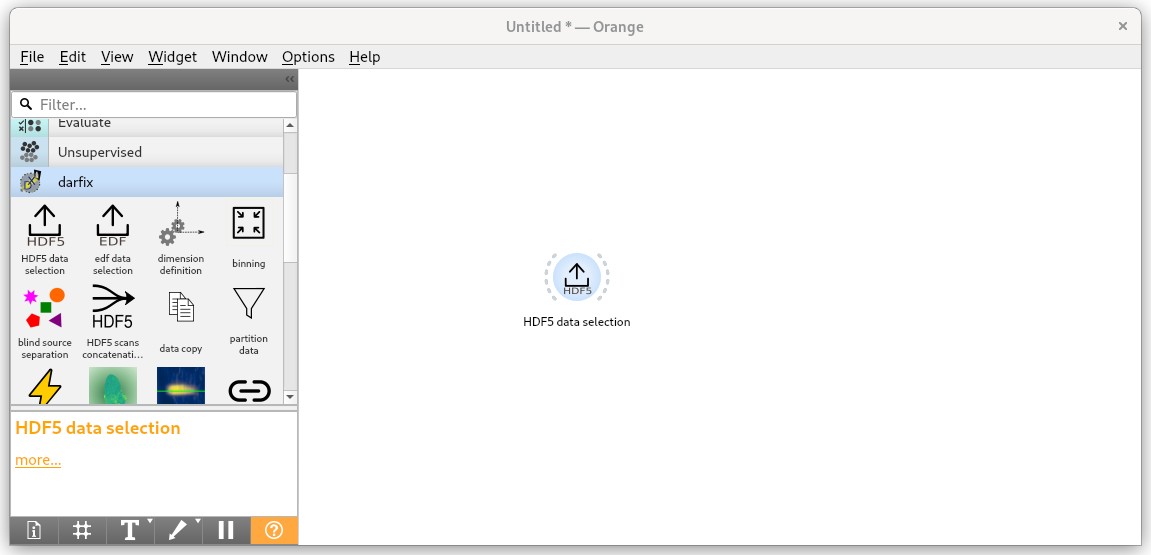

  1. Drag the widget on the canvas (if not already there) and double-click on it

../_images/add_widget1.png

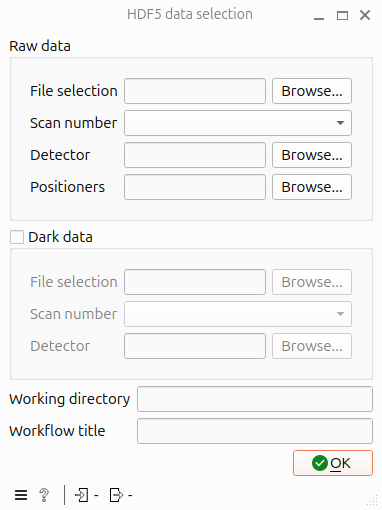

  1. Select a file by typing its path in the File selection path in the Raw data or by clicking Browse button

../_images/empty_widget.png

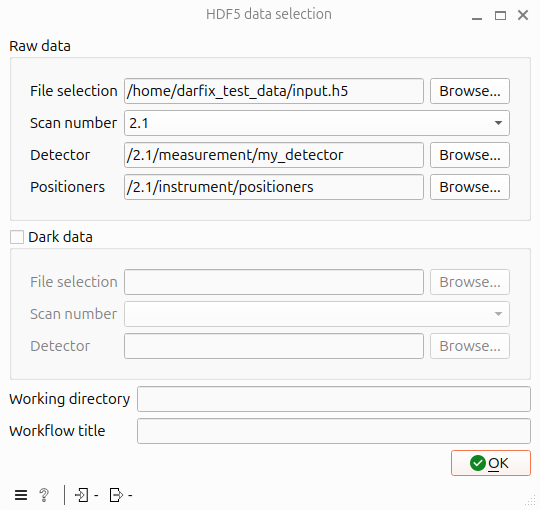

  1. The widget will fill automatically the Scan number, Detector and Positioners fields. You can select another scan by changing the Scan number, Detector and Positioners will update as well.

../_images/filled_widget.png

  1. Once the correct scan number is selected, you can also choose different values for Detector and Positioners if the paths are not standard. This can be done either by changing the text fields or by clicking on the corresponding Browse buttons.

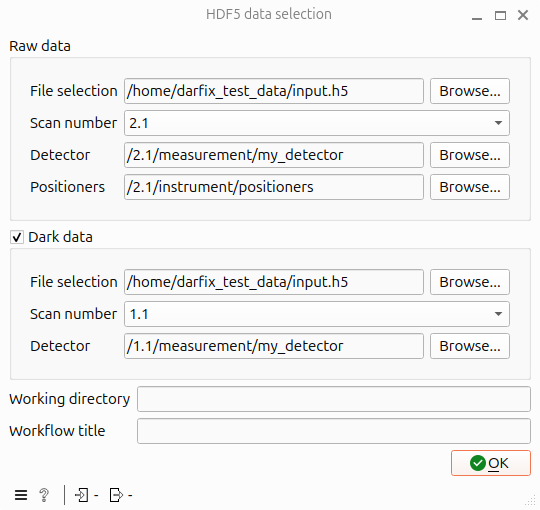

  2. Optional: To select a file to be used as dark data, you can check the Dark data checkbox and select a file, scan number and detector as previously (no positioners are needed in this case).

../_images/dark_data_enabled.png

  1. Optional: Supply a folder where data will be saved in further steps by changing the Working directory field

  2. Optional: Give a Workflow title. This has no incidence on the processing.
